Al Jurf Gardens — 174 Villas. This was my first project at Al Firas, where I worked directly on villa BIM modeling and model-based quantity extraction across the project typologies.
PROJECT
Al Jurf Gardens · P3A
MY ROLE
BIM Architect
SCOPE
174 Villas · 10 Types
PROJECT CONTEXT
Residential Villas · Construction BIM

This case study records Ahmed Attia’s contribution through the organization named on this page. It is included as selected team experience and is not represented as a BIMBATS project commission.

Al Jurf Gardens villa render
INTRODUCTION
The project consisted of 174 villas distributed across 10 typical villa types. My work focused on developing the villa BIM models and then using those models to extract construction quantities.
01 / AL JURF — 174 VILLAS

Context

The project is a large residential villa development at Al Jurf Gardens. The 174 villas are distributed across 10 villa typologies, allowing the BIM production strategy to focus on developing the unique types and then applying them across the repeated villa population.

174Villas
10Villa types
516.76 m²Sample villa BUA · Rawya 5A
≈ 5,168 m²Indicative unique-type modeling scale
02 / AL JURF — 174 VILLAS

My contribution

This was my first project at Al Firas and my scope was centered on BIM production and quantity extraction.

01 · Villa BIM modeling

Developed the BIM models for the project villa typologies, focusing on the unique types rather than remodelling repeated villas individually.

02 · 10-type production logic

Worked across the 10 villa types used to populate the 174-villa development.

03 · Model-based quantities

Used the developed BIM models to extract construction quantities directly from the model data.

04 · Waterproofing take-off

Produced quantity outputs for waterproofing scopes including roof, balconies, exterior and interior wet areas.

03 / AL JURF — 174 VILLAS

Process

The workflow was simple and production-focused: understand the typology, build the model correctly, then turn the BIM data into measurable construction quantities.

01
Understand the villa type
Review the construction information and the villa-specific geometry before modeling.
02
Build the BIM model
Develop the architectural model for each unique villa typology.
03
Structure the model data
Ensure modeled elements can support reliable material and area take-offs.
04
Extract quantities
Generate model-based quantity schedules for construction scopes such as waterproofing and blockwork.
04 / AL JURF — 174 VILLAS

Modeling

The modeling scope covered the 10 unique villa types used across the 174 villas. Using the Rawya 5A sample BUA of 516.76 m² as an indicative benchmark, 10 equivalent typologies represent approximately 5,167.6 m² of unique-type modeling. This is an indicative scale only because the actual villa types vary in area.

Villa BIM model sample
VILLA BIM MODEL / SAMPLE MODELING VIEW
05 / AL JURF — 174 VILLAS

Quantities

Once the villa models were developed, I used them as a source for construction quantity take-offs. The samples below show different model-based quantity outputs produced from the workflow, including structural waterproofing, interior waterproofing and blockwork quantities.

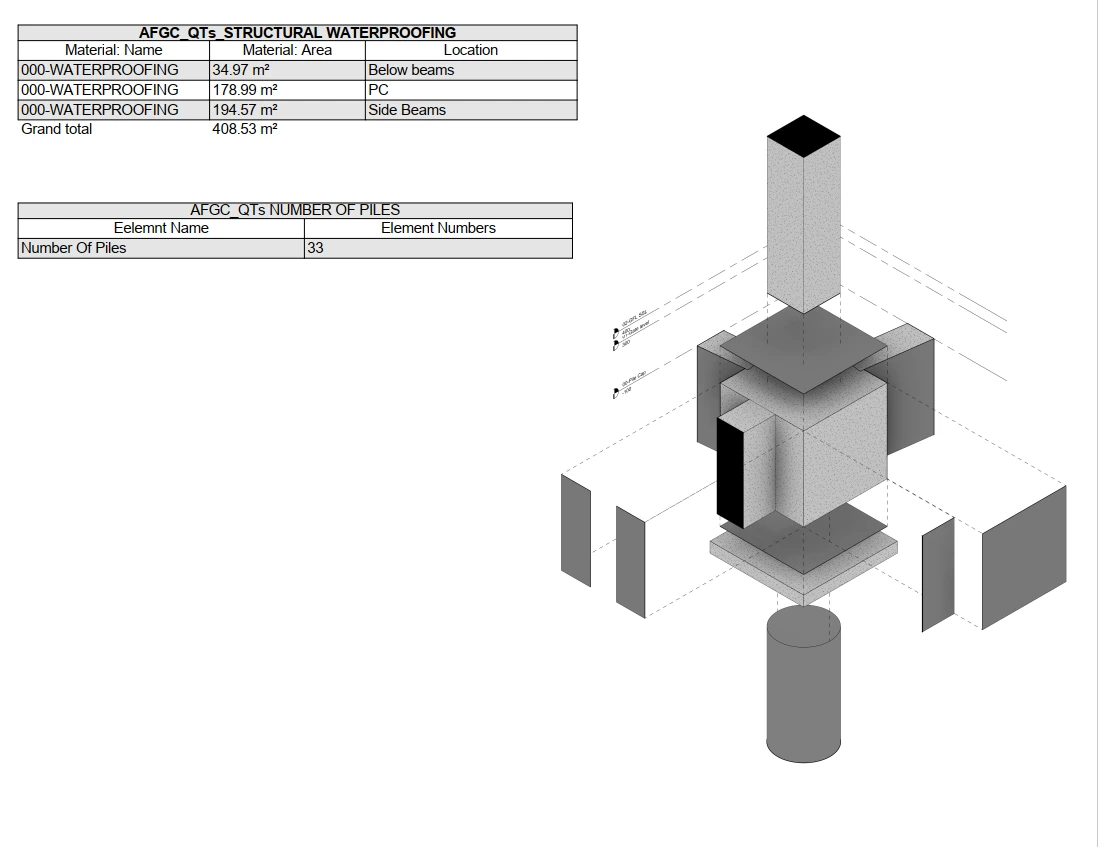

Structural waterproofing quantities sample
STRUCTURAL WATERPROOFING / QUANTITY SAMPLE

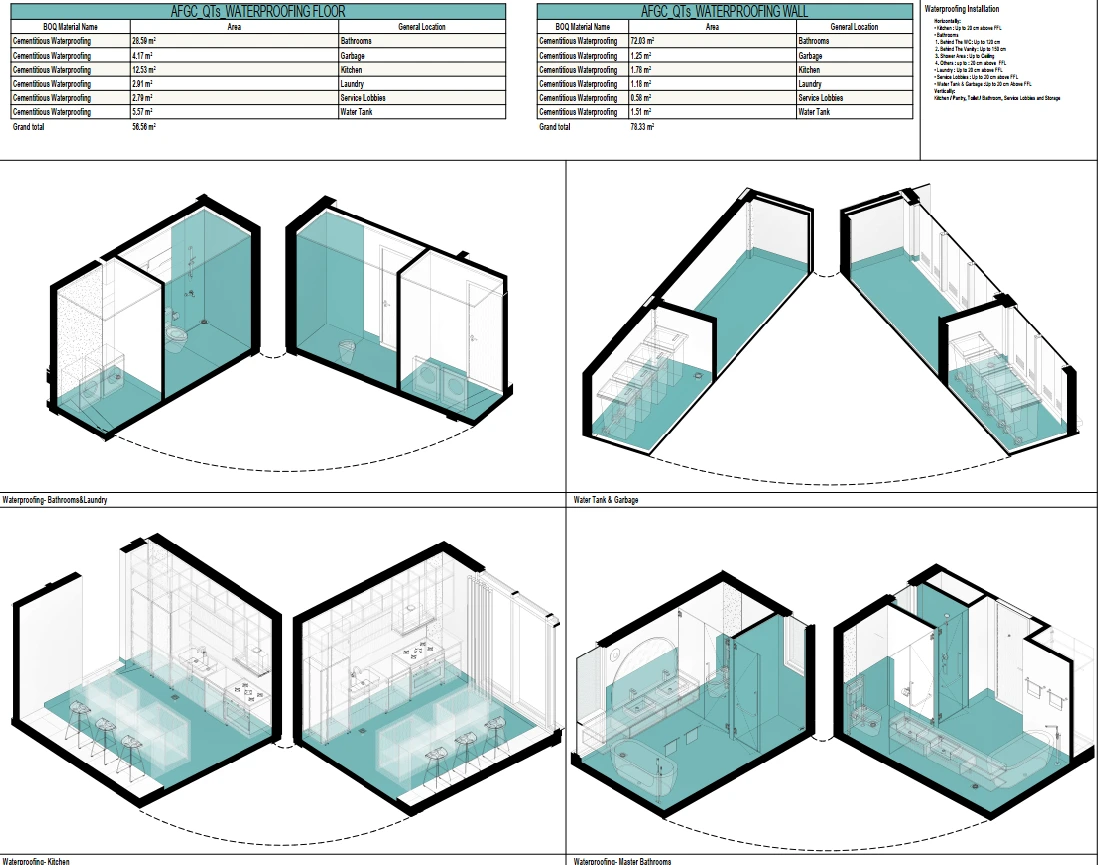

Interior waterproofing quantities sample
INTERIOR WATERPROOFING / QUANTITY SAMPLE

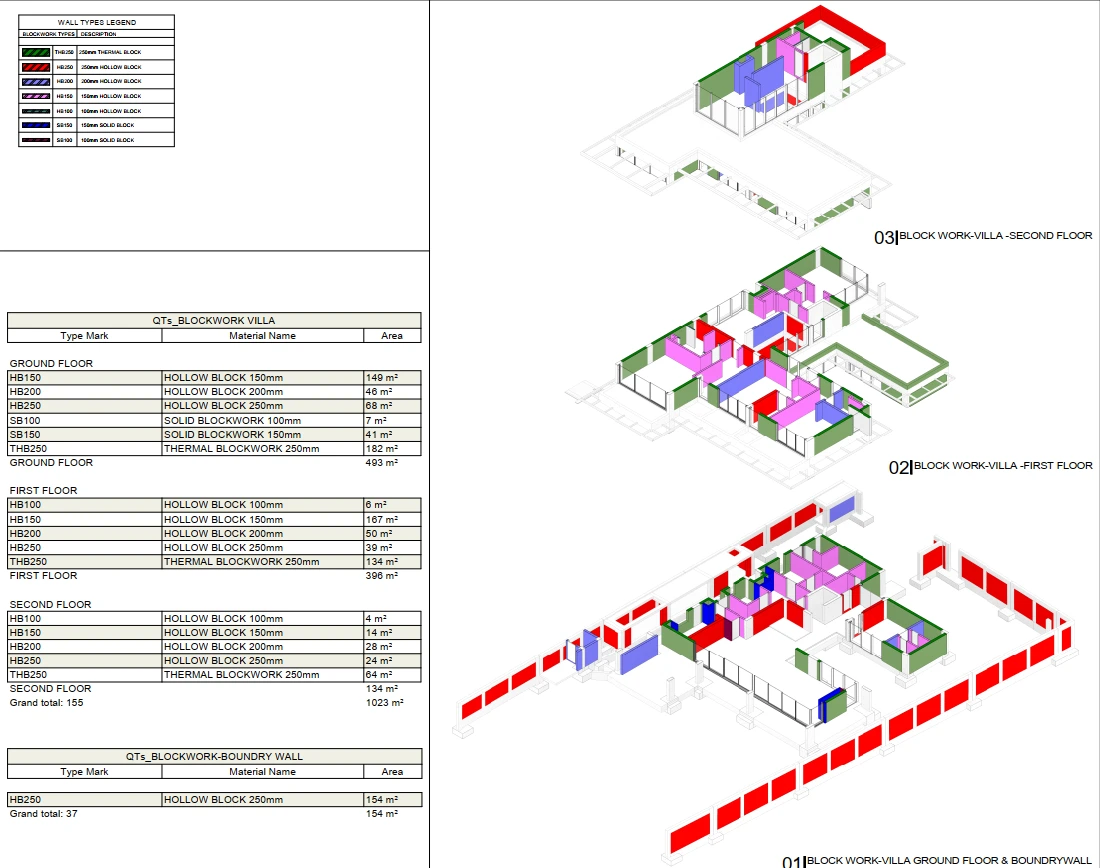

Blockwork quantities sample
BLOCKWORK / QUANTITY SAMPLE
06 / AL JURF — 174 VILLAS

Output

The project produced a compact but practical BIM production workflow.

01

10 villa-type BIM models

Unique typology models forming the production base for the 174-villa development.

02

Model-based quantity schedules

Construction quantity outputs generated directly from the BIM model data.

03

Waterproofing and blockwork take-offs

Representative outputs included structural waterproofing, interior waterproofing and blockwork quantity sheets.

07 / AL JURF — 174 VILLAS

Result

The project gave me a direct construction-BIM workflow from typology modeling to quantity take-off: 10 unique villa types supporting a 174-villa development, with model data used as a measurable source for construction quantities.

Repeatable typology logic

Ten unique models supported a much larger population of repeated villas.

Model-to-quantity workflow

The model was used as a measurable construction database rather than only a 3D deliverable.

Construction-focused outputs

Quantities were linked to practical scopes such as waterproofing and blockwork.

First Al Firas project

The project established my early contractor-side BIM production workflow at Al Firas.
